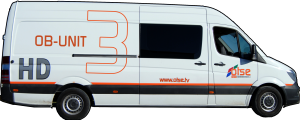

OB-3 HD

UNIT

  • Length: 9.50 m
  • Width: 2.55 m
  • Height: 3.65 m
  • Power requirements: Double 63A 3-Phase (3P+N+PE) inlet with UPS 30KVA

EQUIPMENT

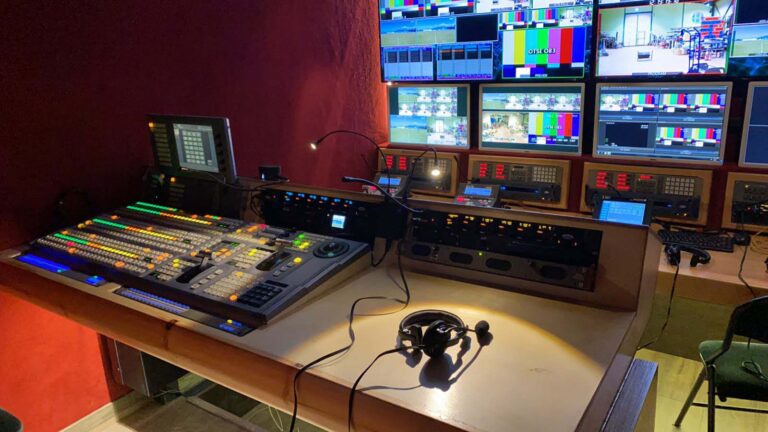

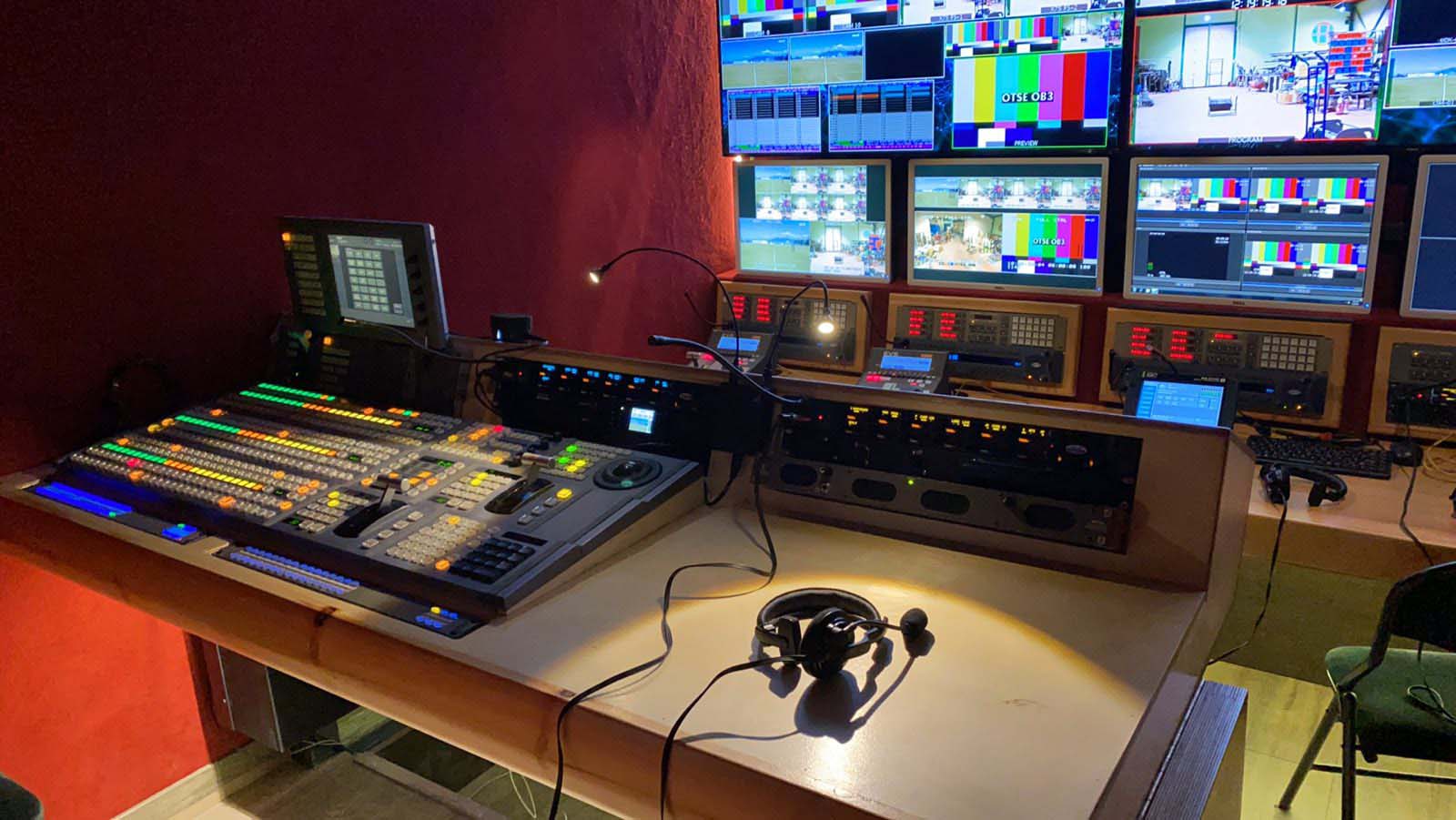

  • SONY MVS-8000ASF with 2ME 24-buttons Panel with 4 Keys/ME
  • SONY MVE-8000A 4x DME Channels P-in-P fully scalable
  • MIRANDA X32 HD Multiviewer on 2x 55 inch LED for PGM-PRW-Sources

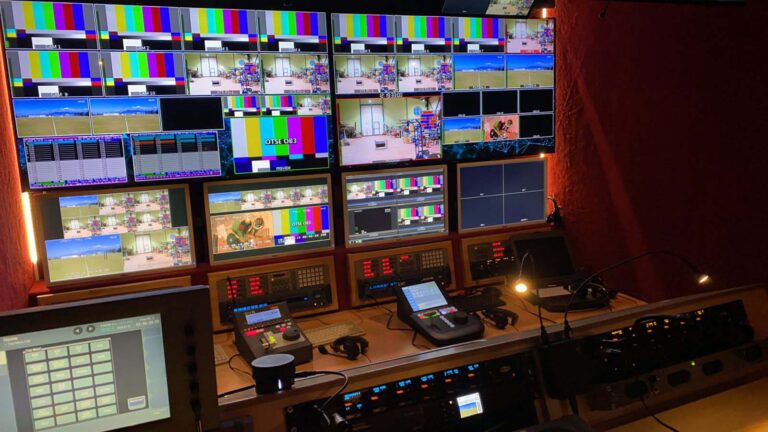

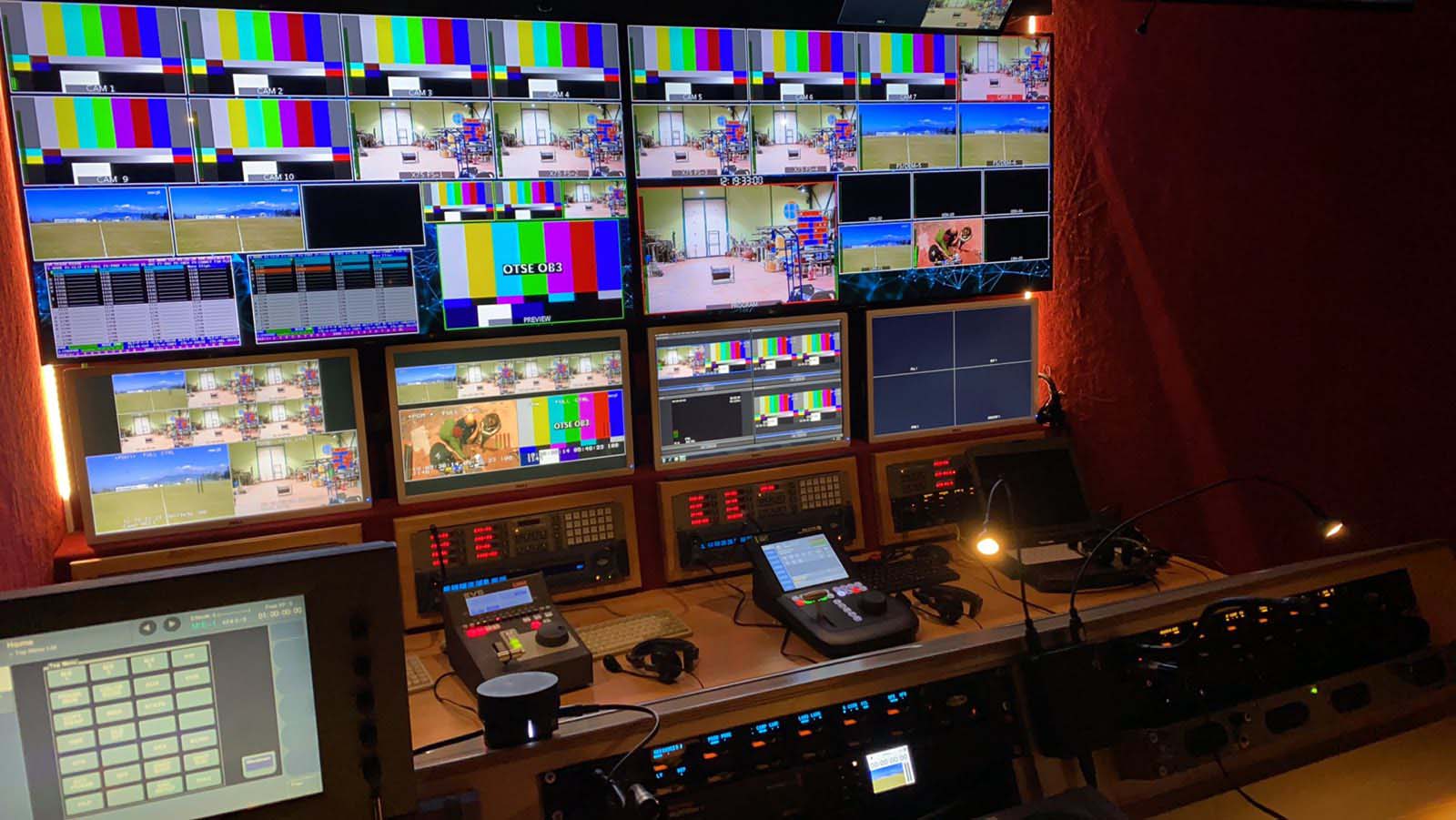

  • 8x 24 inch HD LEDs with Multiviewers in Production Area
  • 4x 26 inch HD LEDs for GFX & LSM

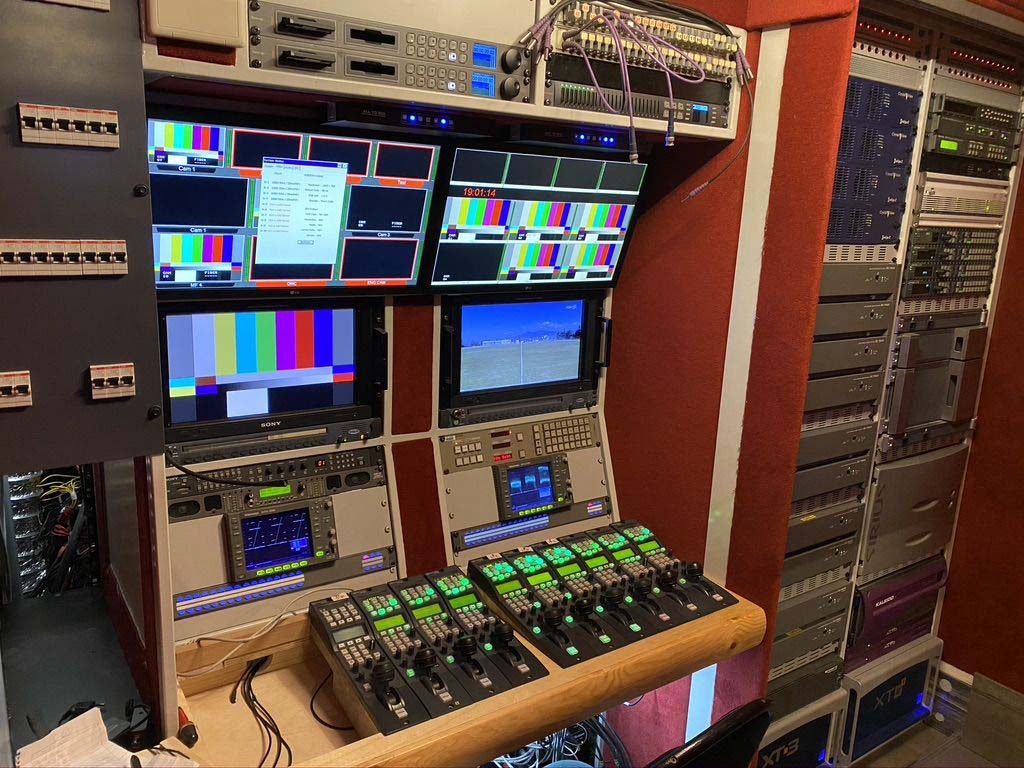

  • 2x 28 inch HD LED with Multiviewers in Audio and Vision Area
  • HD-SDI 128×128 Video Router with Embedded Audio
  • UP to 12x External FS-UP/DOWN/CROSS Converters
  • HD CAMERAS:
    – Up to 10 GVG LDK-8000 Elite 3G-Triax channels Connectors FISHER
    – Up to 4 GVG LDK-8300 HighSpeed 3G-Fiber Super Slow Motion channels Connectors LEMO 3K.93C
    – More than 2000m @ 11mm TRIAX cables available
    – Up to 2 HD WIRELESS Grass Valley LDK-8000 Elite with Remote & Tally
    – Up to 2 HD Mini Channels on FIBER SMPTE
    – Large view finders 7inch LCD for the cameras
    – HD TELE Lenses (100x, 86x, 72x, 66x or according to specific needs of each event)
    – HD WIDE Angle Lenses (14x, 11x or according to specific needs of each event)

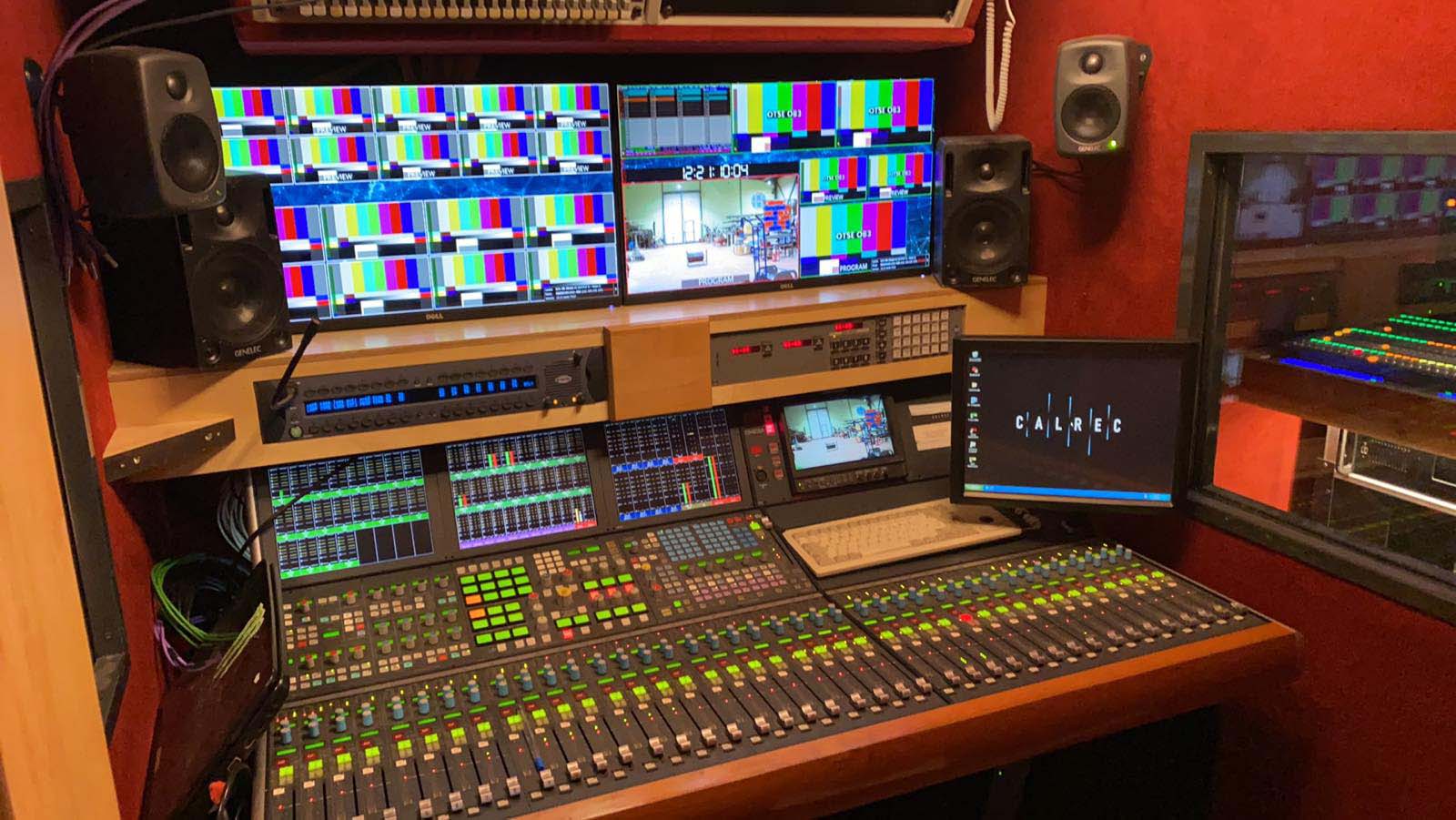

  • CALREC OMEGA with 40-faders
  • Accept AES & Embedded Audio
  • 4x Layers of mixing and monitoring
  • DOLBY Surround Audio Encoding and Decoding
  • 22x Embedders for PGM and more from Router
  • 14x De-embedders
  • 32x AES/EBU inputs
  • 32x Mic/Line inputs
  • 32x AES/EBU outputs
  • 32x Line outputs
  • Clearcom PICO 36×36 Digital Matrix
  • 10x stations inside the Unit & 2x external panels
  • 4x 2-wire & 8x 4-wire communications
  • 2x Wireless System (Telex)
  • 10x 16 channels Walkie Talkie
  • Up to 2x EVS XT3/4 LSM @ (8 rec/2 play or 6 rec/2 play)
  • Up to 8 ISO Recording Channels on Removable Media
  • 1x HD Duplicator for 25 SD Cards
  • 4x HD Ingets channels
  • 2x Dual Channel Graphics Generator (4K/HD/SD)
  • The 2 Character Generators work either independently as different CG channels, either in parallel mode (Dual channel shadow Servers) for 100% On Air Redundancy
  • Supported Resolutions:
    2160p50/60, 2160p25/30, 1080p50/59.94, 1080i50/59.94, 720p50/60-NTSC/PAL

                     See related service page ›

  • Up to 2 HD WIRELESS VISLINK Group attached on Grass Valley LDK / LDX cameras
  • Full Camera / Lens & TALLY controls by VIDEOSYS
